OTHER TRACK MATERIAL OTM
Precision-Engineered Track Components for Superior Rail Performance
MSR is proud to deliver a comprehensive range of high-quality track components designed to meet the diverse needs of the rail industry. Our offering includes tie plates, available in both cleated and non-cleated options, ensuring optimal load distribution and rail stability for various track conditions. We also provide fasteners and Pandrol plates that deliver secure and long-lasting connections to maintain rail integrity under demanding conditions.
Additionally, our expertise extends to manufacturing inert retarder rails, which improve train control and operational efficiency, as well as frogs and diamond inserts, engineered for precise alignment and durability in critical track intersections. Whether you're building new rail infrastructure or maintaining existing systems, MSR’s products are designed for reliability, longevity, and exceptional performance. Partner with us for innovative solutions that keep your rail operations on track.
Other track material (otm)
Cleated Tie Plates
Non-Cleated Tie Plates

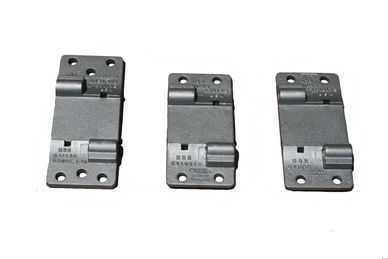

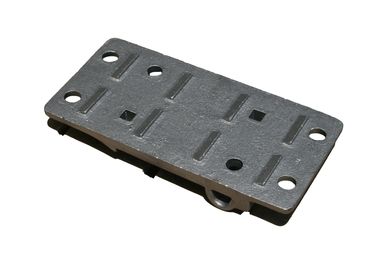

Cleated Tie Plates; casted in ductile iron. Both standard and bridge plates with cleated bottoms for increased track stability.
Standard Tie Plates:
MSR 541018 - 16" tie plate, cast iron, 6" rail bed for 136# & 132# rail, 4 - 1" Lag Holes
MSR 541021 - 15.5" tie plate, cast iron, 5.5" rail bed for 115# & 110# rail, 4 - 1" Lag Holes
Bridge Tie Plates:
MSR 541146 - 18" bridge tie plate, cast iron, 6" rail bed for 136# & 132# rail, 6 - 1" Lag Holes
MSR 541346 - 18" bridge tie plate, cast iron, 5.5" rail base for 115# & 110# rail, 6 - 1" Lag Holes
01-24-015, 01-24-014, 01-24-016, 01-24-017
Non-Cleated Tie Plates
Non-Cleated Tie Plates
Tie Plates; casted in ductile iron.
MSR 544110 - 16" tie plate, cast iron, 6" rail bed for 136# & 132# rail, 4 - 1" Lag Holes
MSR 544111 - 15.5" tie plate, cast iron, 5.5" rail bed for 115# & 110# rail, 4 - 1" Lag Holes
01-29-738, 01-29-737

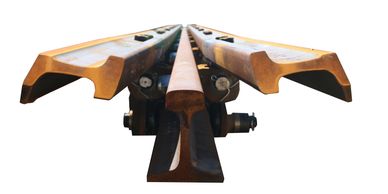

Inert Retarders (friction controlled retarder rails)
Inert Retarders (friction controlled retarder rails)
Complete new inert retarders & replacement parts
MSR manufacturers complete new retarders.
Our inert retarder services can include; the renewing of the traffic and abrasion rails, lever arm and support castings, springs, nuts, bolts, washers and pins.
Finished units are serialized and have their spring forces and operational characteristics verified.
Frogs
Diamond Inserts
Inert Retarders (friction controlled retarder rails)
Self Guarded Manganese (SGM) and Rail Bound Manganese (RBM) Frogs
MSR offers complete rebuild of frogs of any size.
Our SGM and RBM frog services include crack detection and extraction, removal of work hardened sections, weld build up, hardness testing, verification and correction of wheel flange and running surfaces, fastener renewal and rail repair or replacement as required.
Diamond Inserts
Diamond Inserts
Diamond Inserts
Manganese Diamond Inserts
MSR offers complete rebuild of diamond inserts and fabrication of diamond legs.
Our manganese insert services include crack detection and extraction, removal of work hardened sections, application of approved backing plates, weld build up, hardness testing, and the machining of wheel flange and running surfaces.
Switch Stands
Diamond Inserts
Diamond Inserts
Switch Stands; 22P, 22E, 17B, 31B & 36D
Switch stand overhaul services include crack detection and repair, straightening, weld build up and machining, line boring and the installation of hardened bushings or other machined parts where required.
Flags, Keepers & Mast Extensions
Flags, Keepers & Mast Extensions
Flags, Keepers & Mast Extensions
MSR Manufactures new spare parts for switch stands including; handles, masts, targets, keepers, and mast extensions.
